Leaking Shower Filter Connections: 5 Quick Fixes You Can Do

Why Shower Filter Connections Start Leaking

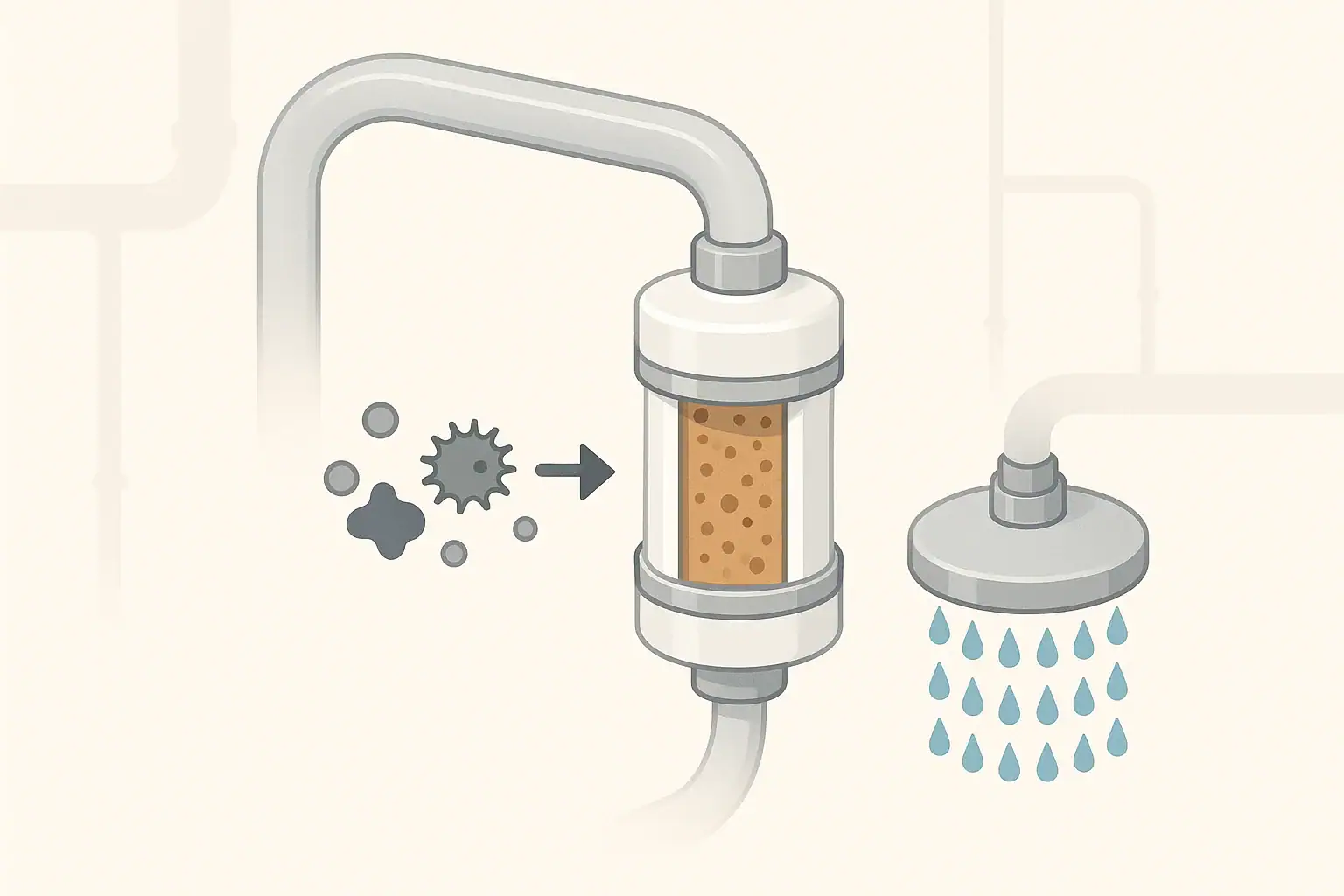

Shower filters are a simple add-on to improve shower water, but the connection points are a common source of drips and sprays. Most leaks come from small mismatches or installation issues at the threads rather than from the filter cartridge itself.

Understanding how shower threads are supposed to seal makes it much easier to find and fix the cause of a leak without trial and error. In most U.S. homes, shower filters connect in line between the wall-mounted shower arm and the showerhead, using the same type of threaded connections.

Typical leak symptoms include:

Slow drip at the joint between the shower arm and filter
Fine spray or mist shooting sideways from the connection
Water pooling or running down the filter housing
Intermittent leaking that changes when the showerhead is moved

Almost all of these symptoms are related to thread sealing and alignment, not the filtration media. That is why checking thread type, cleanliness, and sealing tape is the best starting point.

Common Thread Types on Shower Filters

In the United States, most shower arms and shower filters use a standardized straight pipe thread. However, confusion around thread type and size still causes many installation problems.

Standard U.S. Shower Threads (NPT/NPS)

Most residential shower connections use 1/2-inch straight or tapered pipe threads, often referred to as NPT (National Pipe Thread) or NPS (National Pipe Straight). For shower filters, the important point is that the male and female parts are designed to screw together and seal with tape or a gasket.

Key points about typical shower filter threads:

Nominal size: Commonly 1/2 inch for shower arms and filters
Thread type: Straight or slightly tapered pipe-style threads
Seal mechanism: Sealed by thread tape, paste, and/or a rubber washer

Even though the size is standardized, manufacturing tolerances, burrs, and worn threads can still create small gaps that lead to leaks.

When Threads Do Not Match

Less commonly, a leaking filter connection can be traced to an incompatible thread type. This may occur if:

A non-U.S. shower arm or adapter uses a different standard
Threads are metric or specialty instead of 1/2-inch pipe threads
An adapter is cross-threaded or only partially engaged

Signs of a mismatch include resistance after only a turn or two, visibly crooked alignment, or threads that never fully tighten even when turned by hand.

If the threads do not engage smoothly and evenly by hand, forcing them with a wrench can damage both the shower arm and the filter connection, making leaks worse over time.

Table 1. Checklist for Diagnosing Leaking Shower Filter Connections

Example values for illustration.

Key checks when a shower filter connection is leaking
Check item	What to look for	Typical outcome
Thread engagement	Does it screw on by hand at least 3–4 full turns?	Fewer turns can indicate mismatch or cross-threading
Alignment	Is the filter housing straight with the shower arm?	Crooked joints often leak under pressure
Thread cleanliness	Old tape, debris, mineral scale on threads	Debris can prevent the threads from sealing fully
Washer or gasket	Presence, flatness, and condition of rubber washer	Flattened or missing washers commonly cause drips
Tape coverage	Even layers of PTFE tape on male threads only	Too little or too much tape can both cause leaks
Tightness	Hand-tight plus a small additional snug, not over-torqued	Over-tightening can crack housings or strip threads
Movement under load	Hose or showerhead weight pulling on connection	Side load can open small gaps and start leaks

Use this checklist to narrow down the most likely cause before replacing parts.

Thread Sealing: Tape, Washers, and Paste

Even when thread types match, the sealing method has a major impact on whether the connection stays dry. Small gaps in the threads are normal; sealing materials are what prevent water from escaping under pressure.

Using PTFE Thread Tape Correctly

PTFE tape (often called plumber’s tape) is commonly used on metal-to-metal shower connections. Common issues include wrapping the tape the wrong way, using too little or too much tape, or applying tape where a washer is intended to do most of the sealing.

General considerations for PTFE tape:

Wrap only on the male threaded side of the connection
Wrap in the same direction as the fitting will be tightened so the tape does not unwind during installation
Use enough layers to lightly fill thread grooves without bulging (often 2–4 wraps as a typical example)
Keep the tape back from the opening so fragments do not enter the water path

Over-wrapped threads can prevent the fitting from seating properly, leading to leaks or stress on the filter housing.

Rubber Washers and O-Ring Seals

Some shower filters rely primarily on a rubber washer or O-ring inside the female connection to create a watertight seal. In these designs, PTFE tape may be less important or even discouraged by the manufacturer.

Watch for these washer-related problems:

Washer missing entirely
Washer hardened, cracked, or deformed from age or heat
Washer out of position or pinched during installation

Gently reseating or replacing a worn washer is often enough to stop small drips at these connection points.

Pipe Joint Compounds

In some plumbing work, pipe joint compound (pipe dope) is used instead of or in addition to tape. For shower filters, many homeowners rely on PTFE tape because it is simple and easy to remove. If a compound is used, it should be compatible with potable water components and applied sparingly.

Cross-Threading and Overtightening

Mechanical stress on the connection is another major cause of leaking shower filter threads. Even when the correct thread type is used, cross-threading and overtightening can damage both metal and plastic parts.

How Cross-Threading Starts

Cross-threading happens when the male and female threads are not aligned but are forced together anyway. The parts feel tight, but they do not seal properly and can strip the threads.

Common situations where cross-threading occurs include:

Starting threads at an angle instead of straight on
Using tools before confirming the joint turns easily by hand
Trying to connect while the filter housing is under sideways pressure

If the connection resists turning after the first one or two turns, it is safer to back off and realign rather than forcing it.

Damage from Overtightening

Overtightening is another frequent cause of leaks that develop over time. It can:

Crack plastic filter housings
Strip metal or plastic threads
Flatten or cut rubber washers

As a general guideline, most shower filter joints should be tightened firmly by hand, then given a small additional snug as needed. Heavy wrenching is rarely required on these small connections and can create problems instead of solving them.

Effects of Water Pressure and Flow on Leaks

Even a seemingly minor imperfection in a thread seal can start leaking when subjected to typical household water pressure. Shower filters add a slight restriction to flow, which can influence pressure and stress on the connections.

Typical Residential Shower Pressures

Many homes have static water pressure in the range of tens of pounds per square inch. When the shower is on, the working pressure is usually somewhat lower but still enough to push water through tiny gaps.

Under these conditions, a connection that looks fine when dry may leak once the shower runs for several minutes and components warm up and slightly expand.

Flow Restrictors and Back Pressure

Showerheads sometimes include flow restrictors to limit water use. When a filter is installed between the shower arm and the showerhead, the combination of filter resistance and flow restriction can slightly increase back pressure at the upstream connection.

This back pressure can:

Worsen existing small leaks at the shower arm-to-filter joint
Reveal marginal sealing on older or partially corroded threads
Encourage small drips to become steady leaks

If pressure is unusually high, homeowners sometimes consider using a pressure-reducing valve at the main supply or near the entry point of the plumbing system. Such modifications should follow local plumbing codes and product instructions and are typically handled by a qualified professional.

Mineral Buildup, Corrosion, and Old Hardware

Age-related issues in the shower arm or fittings often contribute to leaking connections, especially in areas with harder water. Mineral deposits and corrosion change the way threads mesh and seal.

Mineral Deposits on Threads

Over time, dissolved minerals in water can leave scale on exposed metal parts. When a filter is added to an existing shower arm, that mineral scale may interfere with the new connection.

Common signs include:

White or off-white crust on the shower arm threads
Rough or uneven thread surfaces
Difficulty removing old tape or washers

Carefully cleaning threads with a soft brush and, if appropriate, a mild descaling method can improve sealing without altering the plumbing layout.

Corroded or Damaged Shower Arms

Metal shower arms can corrode or become pitted where they exit the wall. If the threads themselves are significantly worn down, bent, or cracked, even fresh tape and washers may not provide a long-term solution.

In such cases, replacing the shower arm with a new, compatible part is often the most reliable fix. Any replacement should be installed in a way that does not disturb hidden connections inside the wall beyond what is standard and safe for shower arm changes.

Practical Leak-Prevention Habits

Once a shower filter is installed and no longer leaking, a few simple habits can help keep connections dry over the life of the filter.

Support and Alignment

The weight and leverage of the showerhead, especially with a handheld hose, can pull on the filter connection. To reduce stress:

Position the filter so its weight is supported primarily by the shower arm, not by bending at the connection
Avoid using the filter body as a handle to adjust the showerhead angle
Check that hoses or accessories are not hanging in a way that twists the filter joint

Routine Visual Checks

Incorporating a quick look at the filter joints into regular bathroom cleaning or filter replacement makes it easier to catch small issues early. Look for:

Slow drips forming after the shower is turned off
Mineral trails or discoloration around joints
Fine mist spraying sideways at certain angles

Finding leaks early usually allows straightforward fixes such as reseating washers or renewing thread tape.

Table 2. Example Flow and Pressure Situations Affecting Shower Filter Leaks

Example values for illustration.

How water flow and pressure can influence leak behavior
Situation	Example condition	Possible effect on threaded joints
Low overall pressure	Shower pressure feels weak	Small leaks may be less noticeable but still present
Moderate pressure with filter	Typical home shower use	Marginal seals may drip during or after use
High static pressure	Strong spray; fixtures close quickly with a jolt	Weak points at threads more likely to start leaking
Partially clogged showerhead	Reduced outlet area, more back pressure	Upstream filter connection may show fine spray
Filter nearing replacement time	Flow gradually decreasing	Higher pressure drop across filter can stress joints
Sudden pressure spikes	Appliances turning on and off	Can worsen existing small leaks at connections
Frequent on/off cycling	Multiple short showers per day	More expansion/contraction cycles at threaded joints

Observing how leaks change with flow can help narrow down whether sealing, alignment, or hardware condition is the main factor.

By focusing on thread compatibility, proper sealing materials, mechanical alignment, and the condition of existing shower hardware, most leaking shower filter connections can be understood and addressed in a straightforward, low-stress way.

Frequently asked questions

Why is my shower filter still leaking after I used PTFE (plumber’s) tape?

Common causes are wrapping the tape the wrong way, putting tape on the female side, using too much or too little tape, damaged or dirty threads, or a bad/misaligned washer. Remove the parts, clean the threads and gasket area, check for thread damage, then reapply tape to the male threads in the direction of tightening (2–4 light wraps) and hand-tighten, adding a small snug if needed.

Can I use PTFE tape and a rubber washer together?

Often yes: PTFE tape seals the metal-to-metal threads while a rubber washer seals the mating face inside the female fitting. Make sure the washer is seated and in good condition; if a manufacturer specifically advises against tape for that model, follow their guidance.

How tight should I make the filter connection?

Tighten by hand until firm, then give a small additional snug with a wrench if required. Avoid heavy wrenching — overtightening can crack plastic housings, strip threads, or flatten washers and create bigger leaks.

When should I replace the shower arm or filter housing instead of resealing the connection?

Replace when threads are visibly corroded, pitted, bent, cracked, or repeatedly leak after correct cleaning and sealing. If mineral buildup cannot be cleaned or threads are stripped, a new compatible part is the most reliable long-term fix.
